Steel Frame Sizes 89mm 152mm 305mm C Channel LSF Light Gauge Steel Framing Roll Forming Machine

Name: Steel Frame Sizes 89mm 152mm 305mm C Channel LSF Light Gauge Steel Framing Roll Forming Machine
Brand: Sussman
Price: 1 USD

Quality Steel Frame Sizes 89mm 152mm 305mm C Channel LSF Light Gauge Steel Framing Roll Forming Machine for sale

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 5 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

design software : Vertex, framecad

power(KW) : 11kw sevo motor

product capacity : 12-15m/min

Thickness : 0.8-2.0mm galvanzied steel

Size : C89mm C150mm, C305mm

Machine weight : 3 tons

Applciation : House Buildings, prefab house

Name : width adjustable light steel frame machine manufacturer

Contact Now

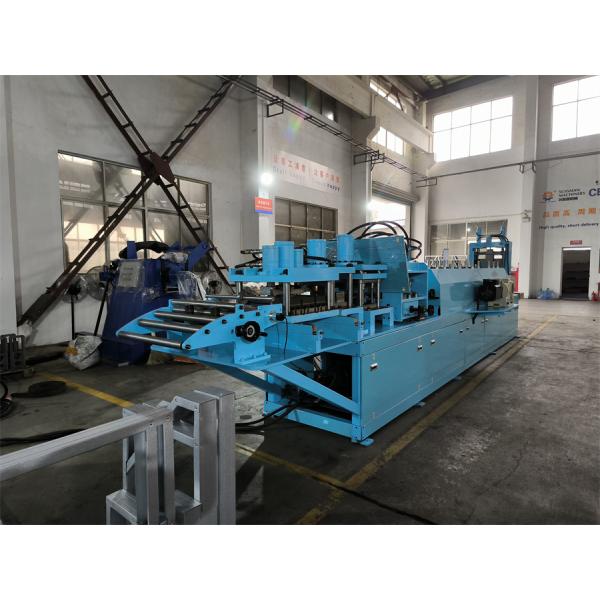

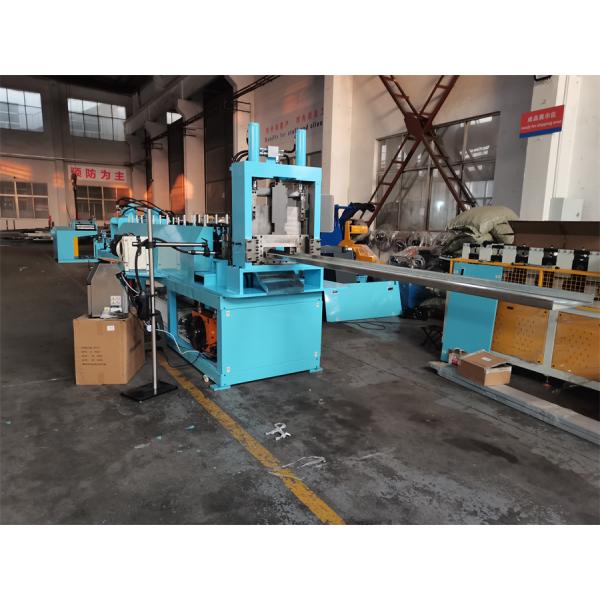

Steel Frame Sizes 89mm 152mm 305mm C Channel LSF Light Gauge Steel Framing Roll Forming Machine

1.Main Specifications

Size	C89 C152 C305
Thickness	0.8-2.0mm (G300-G550Galvanzied coils and Aluzinc )
Standard producing speed	300-700m/h
Max producing speed	1500m/h
Main motor	11kw
Power supplier	380V 50Hz 3phases or according to your request
Hydraulic station	7.5kw
Hydraulic tank capacity	200L
Hydraulic cooling	Fan cooling
Hydraulic pressure	computer set
Frame and punching dies	Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting
Tolerance	0.5mm
Inkjet printer	EC-JET
Machine size	650010001500mm
Weight	5000kg
Color	according to your request
De-colier	bearing 3 tonne, automatical decoiler

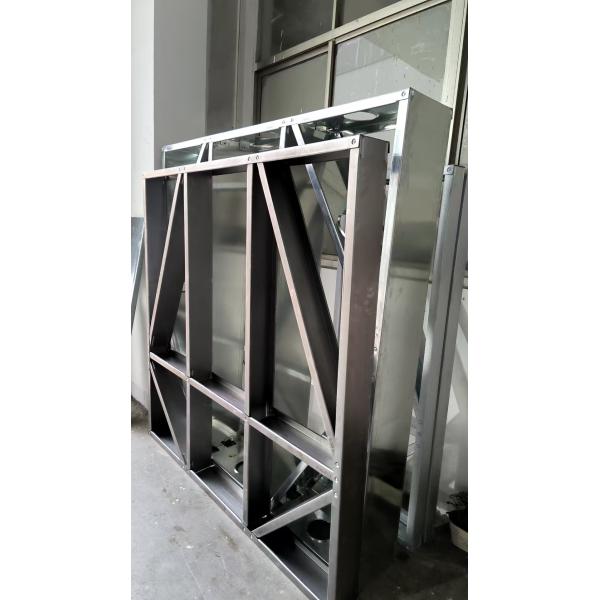

2.Profile photo

Steel framing machine (often called a light gauge steel roll forming machine) that can produce multiple steel frame sizes ranging from 89mm to 305mm(e.g. 89, 100, 150, 200, 250, 305 mm)

Steel Frame Sizes 89mm 152mm 305mm C Channel LSF Light Gauge Steel Framing Roll Forming Machine

2.Machine Components & Specifications:

No.	Items	Quantity

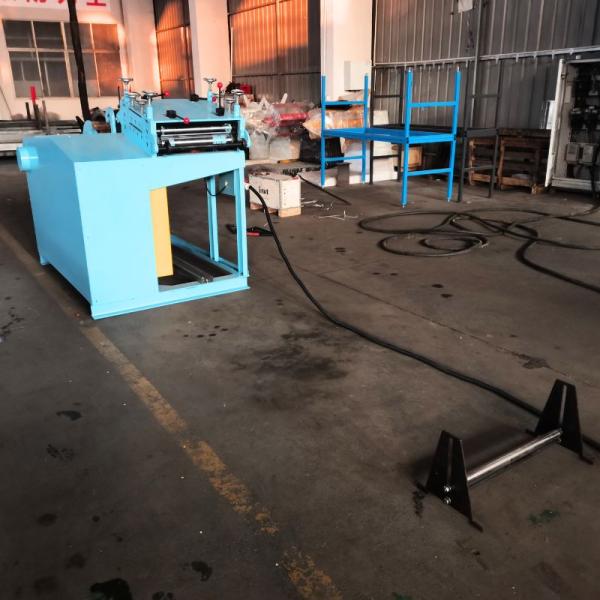

1	3 tons manuall Uncoiler	1
2	Roll Former Machine	1
3	Hydraulic Punching device	6
4	Hydraulic Station	1
5	Vertex Software	1
6	Controlling System	1
7	Printer	1
8	Receiving Table	1
9	Tool box for free

3.Features of Multi-Size Framing Machine

Feature	Description
Automatic Size Adjustment	Some high-end machines offer fully automatic profile changeovers with no manual tooling required. Others are semi-automatic.
Integrated Punching	Punches for service holes, web notches, lip cuts, and screw holes based on framing design.
CNC/PLC Control	Operated via touchscreen or software interface; often includes integration with CAD/BIM software like Vertex, FRAMECAD, or Howick.
Material Compatibility	Typically uses galvanized steel coils (G90/G60), sometimes black steel or aluminum.
Length Cutting	Automated cut-to-length shearing or flying cut system based on design input.

Steel Frame Sizes 89mm 152mm 305mm C Channel LSF Light Gauge Steel Framing Roll Forming Machine
